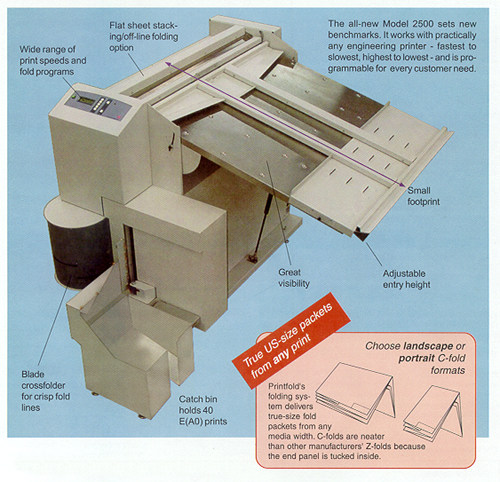

Printfold Model 2500 Features

Compatible with all engineering document printers from 50 mm/s to 200mm/s (40 feet/minute)

• Any document length up to 30 feet
• 8 1/2" X 11" and 9" X 12" packets from any metric or US print size
• Any media width up to 36 inches, including metric sizes
• Choice of format
  • Portrait
  • Landscape
  • Book fold
• Any print size, any orientation... no need to rotate the document
• Choice of cross folding style
  • C-fold
  • Z-fold
• Any packet size
  • All standards US choices
  • Metric
  • Custom

Specifications for Printfold Model 2500

PRINT SPEED

• Up to 40 fpm, 8 ips (200 mm/s)

FOLD ACCURACY

• Exceeds DIN 824 specifications

PRINT WIDTH

• Minimum 11" (279mm), maximum 36" (914mm)

MAXIMUM PRINT LENGTH (accordion fold only)

• Base model: 14x selected accordion panel width
• With Long Document Option: 30x selected accordion panel size [Example: with 8 1/2" (216mm) panels, Maximum length is 30 x 8 1/2 = 255" (645 cm)]

MAXIMUM CROSS FOLDABLE PRINT LENGTH

• 14 x selected Accordion panel width

Maximum lengths given here assume 20 lb (75 gsm) media. Heavier weights may limit capacity

MEDIA WEIGHTS

• 18 lb to 22 lb bond (67.5 to 82.5 gsm)
• ACCORDION FOLDS
• Choice of panel widths: 210 mm, 8 1/2", 9",11",297 mm, 12"

COMMUNICATIONS INTERFACE

• RS-422A
• RS-232C

POWER REQUIREMENTS

• Field selectable: 115 Vac ± 10% (60Hz) or 230 Vac ± 10% (50Hz), 800 VA (dedicated circuit recommended)

Use our response form to request further product information.

PACKET FOLDS

• Choice of portrait (C-Z-fold) or Landscape (C-fold only)
• ANSI packet dimensions: 8 1/2 x 11"
• Architectural packet dimensions: 9"x 12"
• Metric (ISO) packet dimensions: 210 mm x 297 mm
• Custom fold packet sizes available

BOOK FOLDS

• Maximum print length 120:" (305cm)
• Choice of binding edge from 1/2" to 2" in 1/4" increments (metric choices: 20, 30 or 40 mm)

FLAT SHEET STACKER / OFF-LINE FOLDING OPTION

• Unfolded prints exit at the back of the folder and are stacked on an extendable (detachable) wire-form rack
• Capacity is approximately 100 sheets
• The manual feed feature allows the folder to be used off-line for flat sheet folding.

EXIT CONVEYOR OPTIONS: MV and HV

The standard exit catch bin has a capacity of about 40 E-size or A0 prints, adequate for many distributed printing applications. For higher volume production printing installations we recommend a print conveyor.

Capable of stacking up to 100 E-size prints, the MV Exit Conveyor shown here greatly enhances folder productivity. The HV Exit Conveyor, longer but otherwise similar, has a capacity of 200 E-size prints.

WEIGHT

• Net 450 lb (205kg)
• shipping 650 lb (295 kg)
